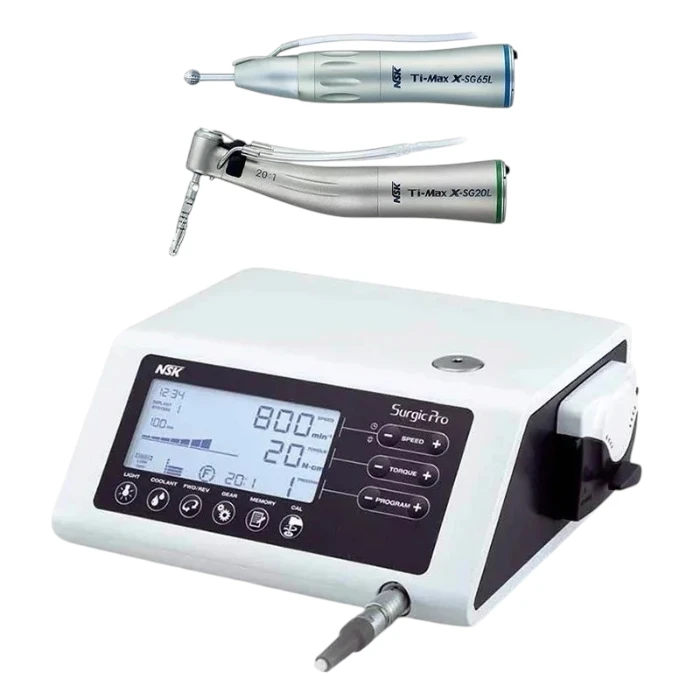

Component Specifications & Features Surgic Pro Optic Physiodispenser

• Surgic Pro Optic Control Unit & Micromotor:
  • • Motor Type: SGL70M LED micromotor delivering over 32,000 LUX of light.
    • Torque Output: Powerful range from 5 Ncm up to 80 Ncm.
    • Speed Range: Flexible control from 200 to 40,000 min⁻¹.
    • Programs: Built-in 8-program memory for customized settings.

• X-SG20L Contra-Angle Handpiece:
  • • Gear Ratio: 20:1 reduction, engineered for low-speed high-torque drilling and implant placement.
    • Material: Solid titanium body with scratch-resistant DURACOAT.
    • Irrigation: Equipped with double irrigation system (external and internal Kirschner/Meyer).

• Surgic Pro Optic Physiodispenser X-SG65L Straight Handpiece:
  • • Gear Ratio: 1:1 direct drive, suitable for standard Ø2.35 HP burs.
    • Max Speed: Delivers up to 40,000 min⁻¹.
    • Design: Titanium body featuring a Clean Head System to prevent cross-contamination.

• Foot Control: IPX8 certified water-resistant foot pedal for hands-free adjustments.
