Key Features & Component Specifications Physiodispenser Surgic Pro

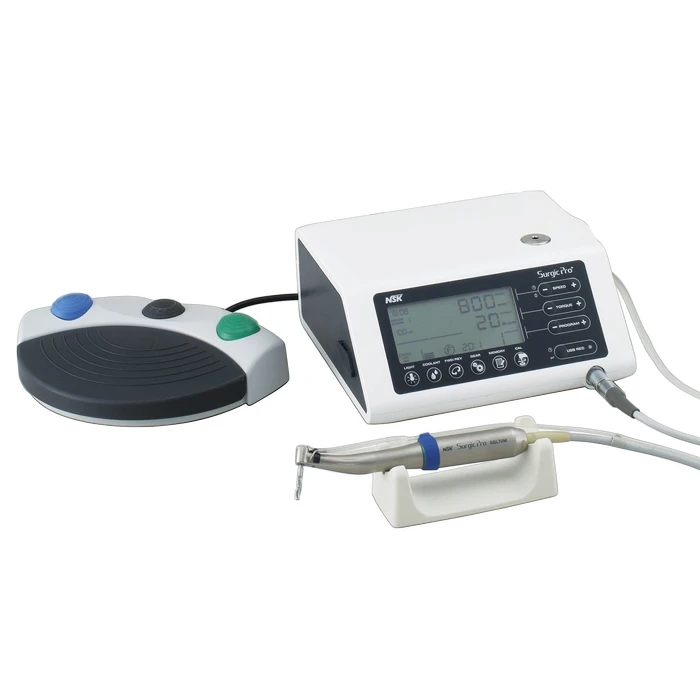

• • Physiodispenser Surgic Pro NSK Surgic Pro LED (Control Unit & Micromotor)
    • • Micromotor: Lightweight titanium body with highly durable LED illumination (>32,000 LUX).
      • Advanced Calibration: Features Advanced Handpiece Calibration (AHC) technology to ensure precise torque accuracy during operation.
      • Performance Range: Delivers a torque output of 5–80 Ncm and a motor speed range of 200–40,000 min⁻¹.
      • Memory Programs: Supports up to 8 implant systems with 64 customizable programs.

  • Physiodispenser Surgic ProNSK Ti-Max X-DSG20L (Contra-Angle Handpiece 20:1)
    • • Gear Ratio: 20:1 reduction.
      • Body Construction: Lightweight, solid titanium body coated with DURACOAT scratch-resistant technology.
      • Cooling System: Features dual irrigation paths, supporting both external and internal cooling systems (Kirschner and Meyer).
      • Chuck & Seal: Equipped with an Ultra Push Chuck mechanism and a double-sealing system to prevent fluid and debris entry into the head.

  • Physiodispenser Surgic Pro NSK X-SG65L (Straight Handpiece 1:1)
    • • Gear Ratio: 1:1 direct drive with a maximum speed of 40,000 min⁻¹.
      • Optics: Integrated with cellular glass optics for optimal visibility at the surgical site.
      • Body Construction: Durable titanium structure with DURAGRIP coating, fully autoclavable and compatible with washer-disinfectors.
