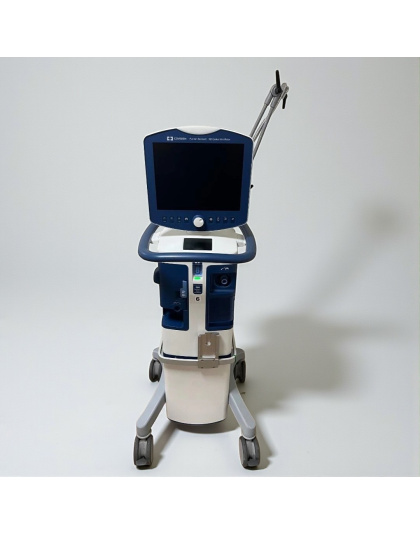

Puritan Bennett 980 Ventilator - Advanced Critical Care Ventilation System
The Puritan Bennett 980 Ventilator represents the pinnacle of mechanical ventilation technology, designed to deliver comprehensive respiratory support for adult, pediatric, and neonatal patients in critical care settings. This state-of-the-art ventilator combines advanced ventilation modes with intuitive operation, making it an essential tool for ICUs, emergency departments, and respiratory care units.
Key Features & Specifications:
Advanced Ventilation Technology:
- Multiple ventilation modes including Volume Control (VC), Pressure Control (PC), SIMV, CPAP, BiLevel, and APRV
- Adaptive Support Ventilation (ASV) for automated weaning protocols
- Non-invasive ventilation (NIV) capabilities
- Pressure Support Ventilation (PSV) with advanced triggering
- High-frequency oscillatory ventilation (HFOV) option available
Clinical Performance:
- Tidal volume range: 2 mL to 2500 mL
- Respiratory rate: 1-150 breaths per minute
- PEEP range: 0-50 cm H₂O
- Inspiratory pressure: Up to 100 cm H₂O
- FiO₂ range: 21% to 100%
- Flow delivery: Up to 200 L/min
Patient Monitoring & Safety:

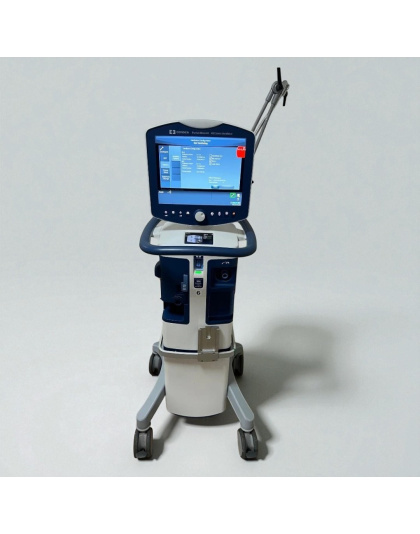

- 15-inch high-resolution color touchscreen display
- Real-time waveform graphics (pressure, flow, volume)
- Comprehensive alarm system with customizable limits
- Trending data and event logging
- Lung mechanics monitoring (compliance, resistance)
- Auto-PEEP detection and measurement
User Interface & Workflow:
- Intuitive touchscreen navigation
- Quick access to frequently used settings
- Customizable screen layouts
- Multi-language support
- Remote monitoring capabilities
- Electronic medical record (EMR) integration
Versatility & Flexibility:
- Suitable for adult, pediatric, and neonatal patients
- Invasive and non-invasive ventilation options
- Transport-ready with internal battery backup
- Compatible with various oxygen sources
- Heated humidification system compatible
Safety Features:
- Dual-circuit design for enhanced reliability
- Automatic leak compensation
- Apnea backup ventilation
- Oxygen concentration monitoring
- Comprehensive alarm management system
- Battery backup for up to 60 minutes
Clinical Applications:
- Intensive Care Units (ICU)
- Emergency Departments
- Operating Rooms
- Post-Anesthesia Care Units (PACU)
- Respiratory Care Units
- Transport ventilation
- Long-term acute care facilities
Benefits:
For Healthcare Providers:
- Reduces workload with automated features
- Enhances patient safety with advanced monitoring
- Streamlines workflow with intuitive interface
- Supports evidence-based ventilation strategies
- Facilitates faster weaning protocols
For Patients:
- Improved patient-ventilator synchrony
- Reduced risk of ventilator-induced lung injury
- Enhanced comfort during ventilation
- Better clinical outcomes
- Shorter ventilation duration
Technical Specifications:
Physical Dimensions:
- Height: 140 cm (55 inches)
- Width: 38 cm (15 inches)
- Depth: 48 cm (19 inches)
- Weight: Approximately 70 kg (154 lbs)
Power Requirements:
- AC Power: 100-240V, 50/60 Hz
- Internal Battery: Lithium-ion, up to 60 minutes runtime
- Power Consumption: 200W average
Environmental Conditions:
- Operating Temperature: 10°C to 40°C (50°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Humidity: 15% to 95% non-condensing
- Altitude: Up to 3,000 meters (10,000 feet)
Package Includes:
- Puritan Bennett 980 Ventilator main unit
- 15-inch touchscreen display
- Patient circuit (adult/pediatric/neonatal options)
- Power cord and battery
- User manual and quick reference guide
- Service and calibration documentation
- Mounting bracket for mobile cart
- Basic accessories kit
Optional Accessories & Upgrades:
- Heated humidification system
- Capnography module (EtCO₂ monitoring)
- Advanced graphics package
- Remote monitoring software
- Additional patient circuits
- Transport cart with battery backup
- Wireless connectivity module
- Data management software
Warranty & Support:
- Manufacturer warranty: 1-2 years (varies by region)
- Extended warranty options available
- 24/7 technical support
- On-site service and maintenance
- Preventive maintenance programs
- Training and education services
- Spare parts availability guaranteed
Why Choose Puritan Bennett 980?
The PB 980 Ventilator stands out as a leader in critical care ventilation due to its combination of advanced technology, clinical versatility, and user-friendly design. Healthcare facilities worldwide trust this ventilator for its reliability, comprehensive monitoring capabilities, and ability to support complex ventilation strategies.
Whether you're upgrading your ICU equipment, expanding your respiratory care capabilities, or seeking a reliable ventilator for emergency situations, the Puritan Bennett 980 delivers exceptional performance and value.
Ideal For:
- Hospitals and medical centers
- Critical care facilities
- Emergency medical services
- Respiratory therapy departments
- Academic medical institutions
- Long-term acute care hospitals
- Military and field hospitals
Investment in Patient Care:
Investing in the Puritan Bennett 980 Ventilator means investing in superior patient outcomes, enhanced clinical capabilities, and operational efficiency. This ventilator's advanced features support evidence-based ventilation practices while its intuitive design reduces training time and operational complexity.
- Model: Puritan Bennett 980
- Brand: Covidien
