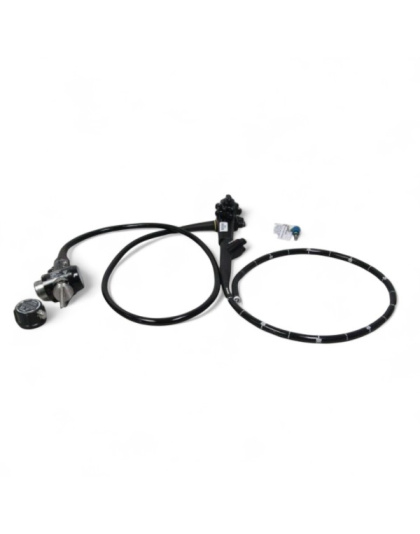

Olympus EXERA II GIF-2TH180 Video Gastroscope

Overview

The Olympus GIF-2TH180 is a state-of-the-art therapeutic video gastroscope from the renowned EXERA II series, specifically engineered for advanced diagnostic and therapeutic procedures in the upper gastrointestinal tract. This sophisticated endoscopic instrument represents a significant advancement in gastrointestinal imaging technology, combining exceptional optical performance with therapeutic capabilities that enable clinicians to perform complex interventions with precision and confidence.

Detailed Technical Specifications

Optical Characteristics

• Field of View: 140° - providing comprehensive visualization of the gastric mucosa
• Depth of Field: 3-100 mm - ensuring sharp focus from near to far distances
• Direction of View: Forward-viewing (0°) - optimal for standard upper GI examination
• Image Sensor: High-resolution CCD chip for superior image quality
• Magnification: Compatible with optical enhancement technologies

Physical Dimensions and Design

• Working Length: 1030 mm - adequate reach for complete upper GI tract examination
• Insertion Tube Diameter: 11.3 mm - balanced between patient comfort and functionality
• Instrument Channel: 2.8 mm (large therapeutic channel) - facilitating passage of larger accessories
• Distal End Diameter: 11.8 mm - compact design for easier insertion
• Total Length: Approximately 1350 mm including control section

Advanced Angulation System

• Up Angulation: 210° - exceptional upward deflection for retroflexion views
• Down Angulation: 90° - adequate downward viewing capability
• Right Angulation: 100° - comprehensive lateral maneuverability
• Left Angulation: 100° - symmetrical control for precise navigation

Distinguished Features

1. Large Therapeutic Channel Technology

The 2.8 mm working channel represents a significant advantage, allowing passage of larger therapeutic accessories including:

• Large biopsy forceps for adequate tissue sampling
• Polypectomy snares for removal of larger polyps
• Hemostatic devices for bleeding control
• Retrieval baskets and nets for foreign body extraction
• Injection needles for submucosal therapy
• Argon plasma coagulation probes

2. Enhanced Imaging Capabilities

• Compatible with EXERA II CV-180 video processor system
• High-resolution imaging with exceptional color reproduction
• Narrow Band Imaging (NBI) technology for enhanced mucosal and vascular pattern visualization
• Superior contrast resolution for detecting subtle lesions
• Reduced image noise for clearer diagnostic images
• Real-time image processing for immediate assessment

3. Ergonomic and User-Friendly Design

• Redesigned control section for reduced hand fatigue during prolonged procedures
• Intuitive button placement for quick access to essential functions
• Improved grip texture for secure handling
• Reduced insertion force technology for enhanced patient comfort
• Optimized flexibility profile for easier navigation through anatomical curves
• Water-jet function for efficient lens cleaning

4. Durability and Reliability

• Robust construction for extended service life
• Enhanced water resistance for thorough reprocessing
• Reinforced insertion tube to prevent damage
• Reliable angulation mechanism for consistent performance

Comprehensive Clinical Applications

Diagnostic Procedures

• Esophagogastroduodenoscopy (EGD): Complete upper GI tract examination
• Barrett's Esophagus Screening: Early detection of precancerous changes
• Gastritis Assessment: Evaluation of inflammatory conditions
• Peptic Ulcer Disease: Diagnosis and monitoring
• Celiac Disease: Duodenal biopsy for confirmation
• Cancer Screening: Early detection of esophageal and gastric malignancies

Therapeutic Interventions

• Polypectomy: Removal of gastric and duodenal polyps
• Hemostasis: Control of upper GI bleeding using various techniques
• Esophageal Dilation: Treatment of strictures and stenosis
• Stent Placement: Palliative treatment for malignant obstruction
• Foreign Body Retrieval: Safe extraction of ingested objects
• Variceal Ligation: Management of esophageal varices
• Endoscopic Mucosal Resection (EMR): Early cancer treatment

Biopsy and Sampling

• Multiple tissue sampling for histological examination
• Brush cytology for cellular analysis
• Targeted biopsies under NBI guidance

System Compatibility and Integration

Compatible Equipment

• Video Processor: EXERA II CV-180 for optimal image processing
• Light Source: CLV-180 xenon light source for brilliant illumination
• Documentation: Various recording and archiving systems
• Accessories: Full range of Olympus therapeutic instruments

Maintenance and Reprocessing

The GIF-2TH180 is designed for efficient reprocessing following established guidelines:

• Compatible with automated endoscope reprocessors
• Leak testing before each cleaning cycle
• High-level disinfection protocols
• Regular maintenance scheduling for optimal performance

Clinical Advantages

• Enhanced Diagnostic Accuracy: Superior imaging helps identify subtle pathologies
• Therapeutic Versatility: Large channel enables diverse interventions
• Patient Comfort: Optimized design reduces procedure-related discomfort
• Procedural Efficiency: Ergonomic features enable faster examinations
• Cost-Effectiveness: Durable construction reduces replacement frequency

Important Safety Information: This is a professional medical device requiring trained and certified medical personnel for operation. Always follow manufacturer guidelines, institutional protocols, and established clinical practice standards. Proper training in endoscopic procedures is essential before using this equipment.

• Model: GIF-2TH180
• Brand:
